Crane C-Hook Overhang lifter
Vacuum Lifters
Crane C-Hook for Overhangs, Eaves & Restricted Access Panel Installation
Installing insulated roof and wall panels beneath overhangs, eaves, balconies, canopies, and other restricted access areas can be one of the most challenging aspects of a cladding project. Traditional vacuum lifting equipment often cannot achieve the required clearance, making panel positioning difficult and increasing installation time.
The Vac Lifting Crane C-Hook has been specifically designed to overcome these challenges. Used in conjunction with a vacuum lifter, the C-Hook provides the additional reach and clearance needed to safely position composite panels in areas where standard lifting methods are impractical.
Whether you’re working on industrial roofing, commercial cladding, distribution centres, cold stores, warehouses, or manufacturing facilities, the Crane C-Hook enables installers to complete difficult panel installations safely and efficiently.
C Hook Key Benefits
- Ideal for installing panels beneath overhangs, eaves, balconies, and canopies
- Increases access in restricted installation areas
- Compatible with vacuum lifting equipment
- Improves panel positioning accuracy
- Reduces manual handling requirements
- Helps improve site safety and installation efficiency
- Available for both hire and purchase throughout the UK
Typical Applications
The Crane C-Hook is regularly used on:
- Composite roof panel installations
- Insulated wall panel projects
- Cold store construction
- Warehouse developments
- Industrial roofing projects
- Commercial and retail developments
- Manufacturing facilities
- Distribution centres and logistics hubs
Why Use a C-Hook?
When installing long insulated panels beneath roof overhangs or projecting structures, crane access can be limited. The C-Hook allows the vacuum lifter and panel to be positioned further beneath the obstruction while maintaining safe lifting practices and precise control.
This enables contractors to complete installations that would otherwise require additional labour, temporary works, or alternative lifting methods.

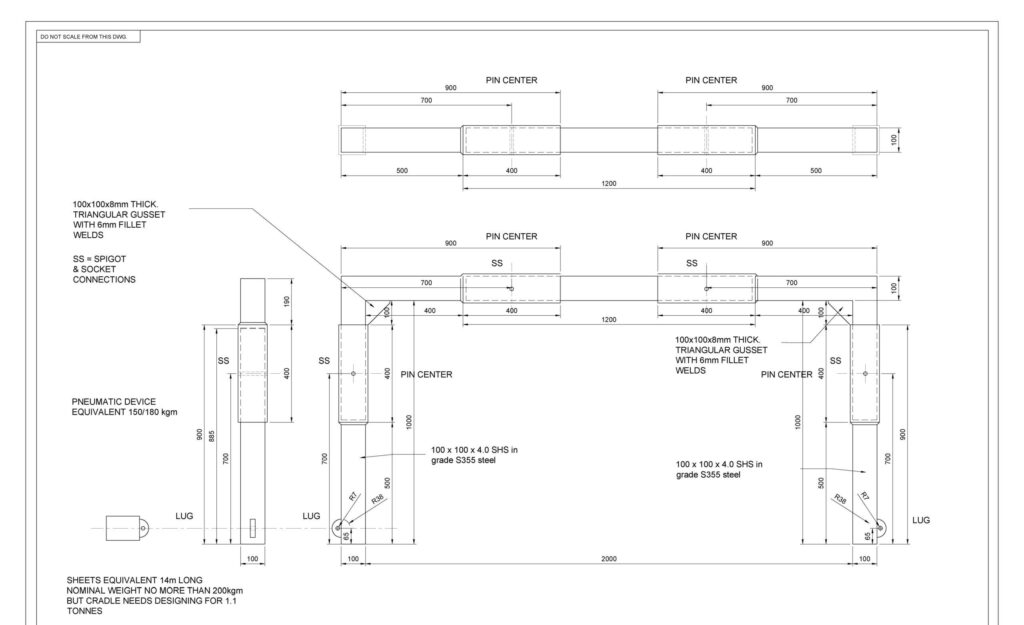

Technical Specification
- Working Load Limit (WLL): 1000kg
- Depth: 1000mm
- Depth with Vacuum Lifter Attached: 935mm
- Internal C-Hook Length: 2000mm
Training & Support Included
Every C-Hook hire or purchase includes expert guidance, training, and ongoing support from the Vac Lifting team. We ensure operators understand the correct and safe use of the equipment for their specific application.
Our experienced team can also advise on the most suitable vacuum lifting solution for your project, helping you maximise productivity while maintaining the highest safety standards.
