GB-XL Curved
Vacuum Lifters
GB-XL Curved – Glass Vacuum Lifter

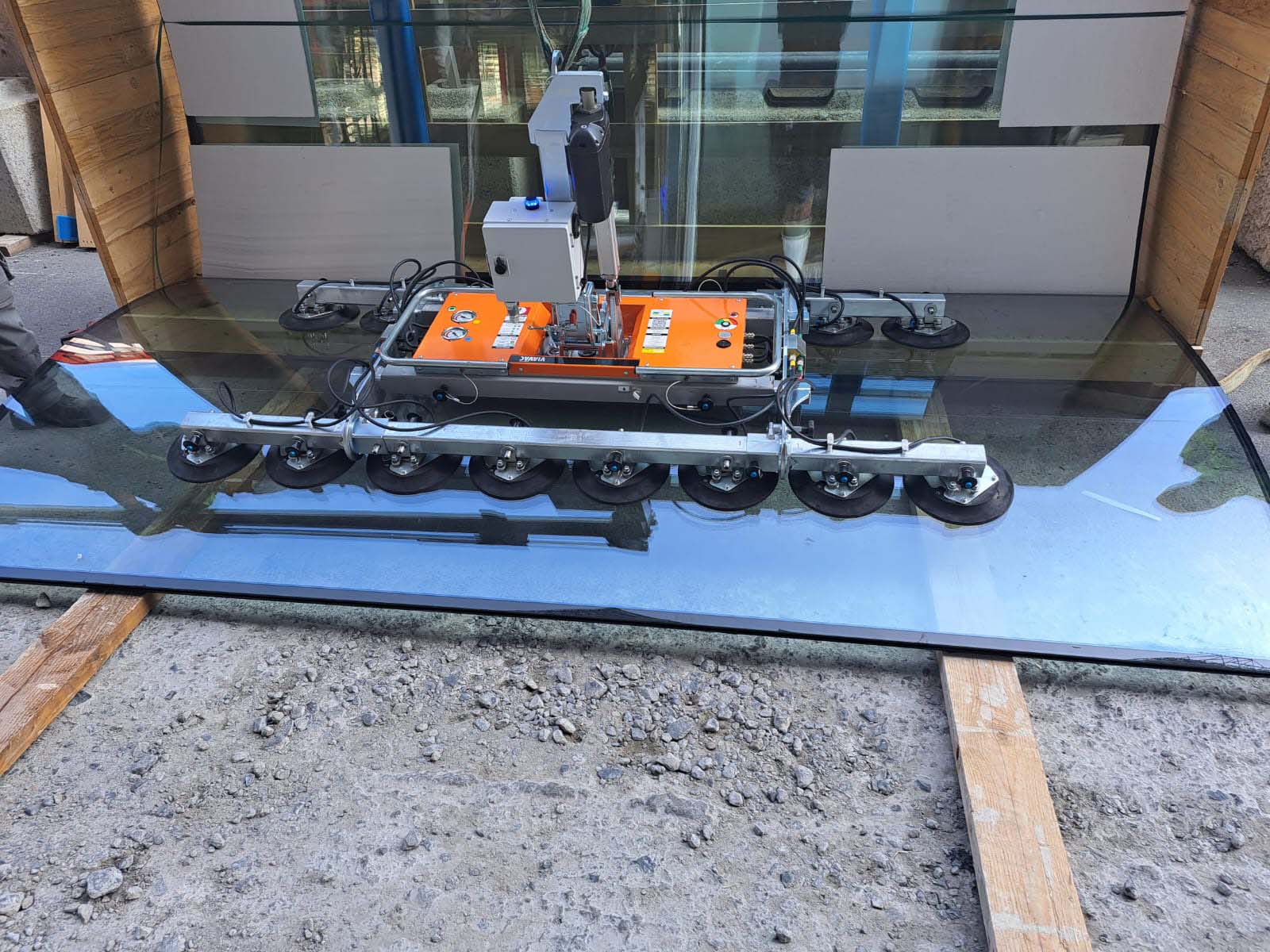

The VIAVAC GB-XL Curved is suitable for mounting flat and curved glass panels up to 700 kg.
The device is adjustable for different radiuses (max. 800 mm). The glass can be picked up on both the convex and the concave sides.
- Max. capacity: 700 kg
- For curved glass
- Dual vacuum circuit
- 90˚ tiltable and 360˚ rotatable
Vacuum Lifter From World Renowned Manufacturer
VIAVAC are the industry-renowned manufacturer behind the Glass Boy panel lifter range, as well as:
The GB-XL Curved , as with all VIAVAC vacuum lifters, has earned a fantastic reputation across the world and is currently used in more than 35 countries.
At 4 Cladding Services, we are proud to be the sole UK distributor for VIAVAC providing amazing products such as the GB-XL Curved and first-rate training, maintenance and support.
GB-XL Curved Curved Features and Specifications
The VIAVAC GBXL Curved is suitable for mounting flat and curved glass panels up to 700 kg.
- Max. capacity: 700 kg
- For curved glass
- Dual vacuum circuit
- 90˚ tiltable and 360˚ rotatable
The Glass Boy GB-XL Curved
The GB-XL Curved is the pinnacle of VIAVAC’s Glass Boy Range. Here at 4 Cladding Services, we have the following Glass Boy glass vacuum lifters available to hire or purchase:
We have a selection of sale and hire options available for the GB-XL Curved. Purchasing the GB-XL Curved outright is a great option and a worthwhile investment if it will see a lot of use. It’s a widely versatile vacuum lifter with many uses which can be utilised across projects. However, if you only require the GB-XL Curved for a limited number of projects, get in touch and ask about our hire options. We’ll discuss your needs and find the best solution for your project requirements.
Our services don’t end with the sale. To help you get the most from the GB-XL Curved and to ensure your safety on site, we provide free GB-H Curved vacuum lifter training at our premises in Gilberdyke. We will show you how to safely and effectively operate the Glass Boy GB-H Curved for your specific profile requirements to help you maximise productivity on your next project.
The Glass Boy GB-XL Curved is a versatile vacuum lifter with many great uses and features. But you can get even more from them with additional accessories and suction pads.
We also deliver continued support to keep your GB-H Curved working optimally. We offer ongoing support, servicing, and maintenance, which are all covered by a 12-month warranty. We keep your vacuum lifters in peak condition so you can be confident it’s producing the maximum output and meets all necessary LOLER regulation requirements.

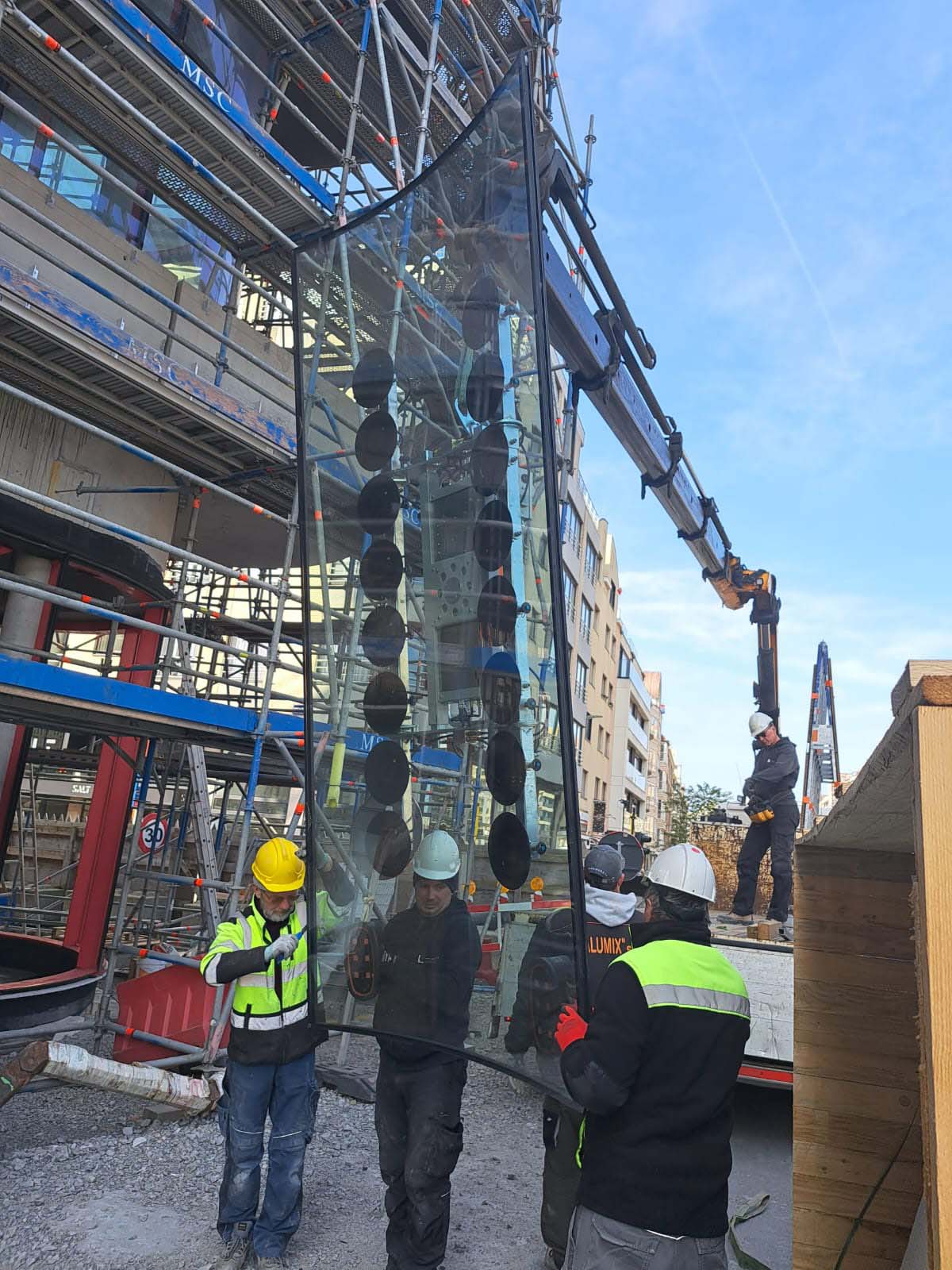

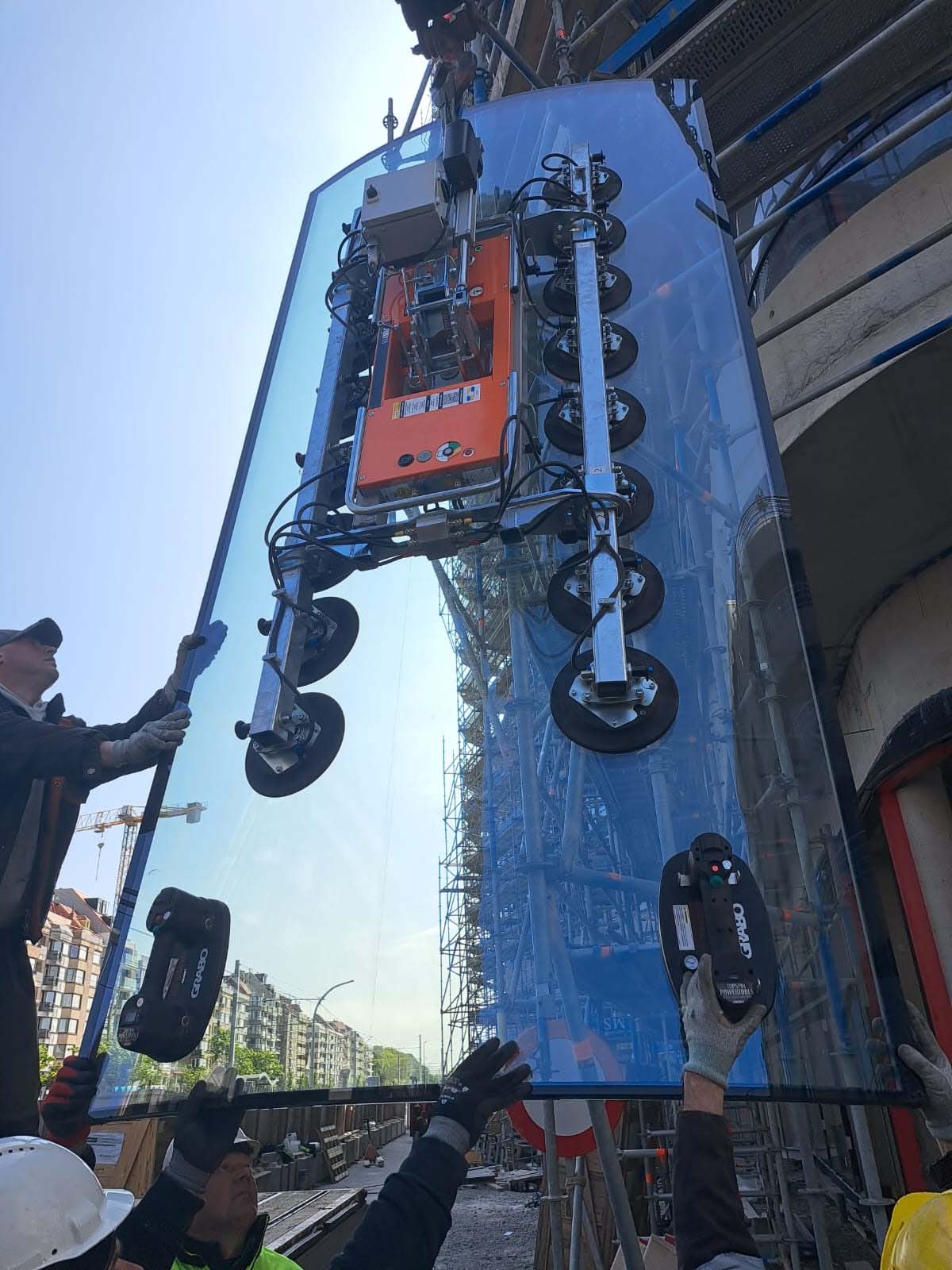

Curved glass installation up to 700 kilograms
The use of curved glass is very popular in the construction industry. Curved glass offers the opportunity to create unique and aesthetically pleasing buildings with a modern look. In addition, curved glass panels are becoming larger and heavier, which requires a solution to safely install the glass and relieve the installation team. The best method for this is to use a glass lifter. VIAVAC has developed a glass lifter that provides both. The VIAVAC GB-XL Curved places curved glass up to a weight of up to 700 kilograms.
Usable for a wide range of lifting weights.

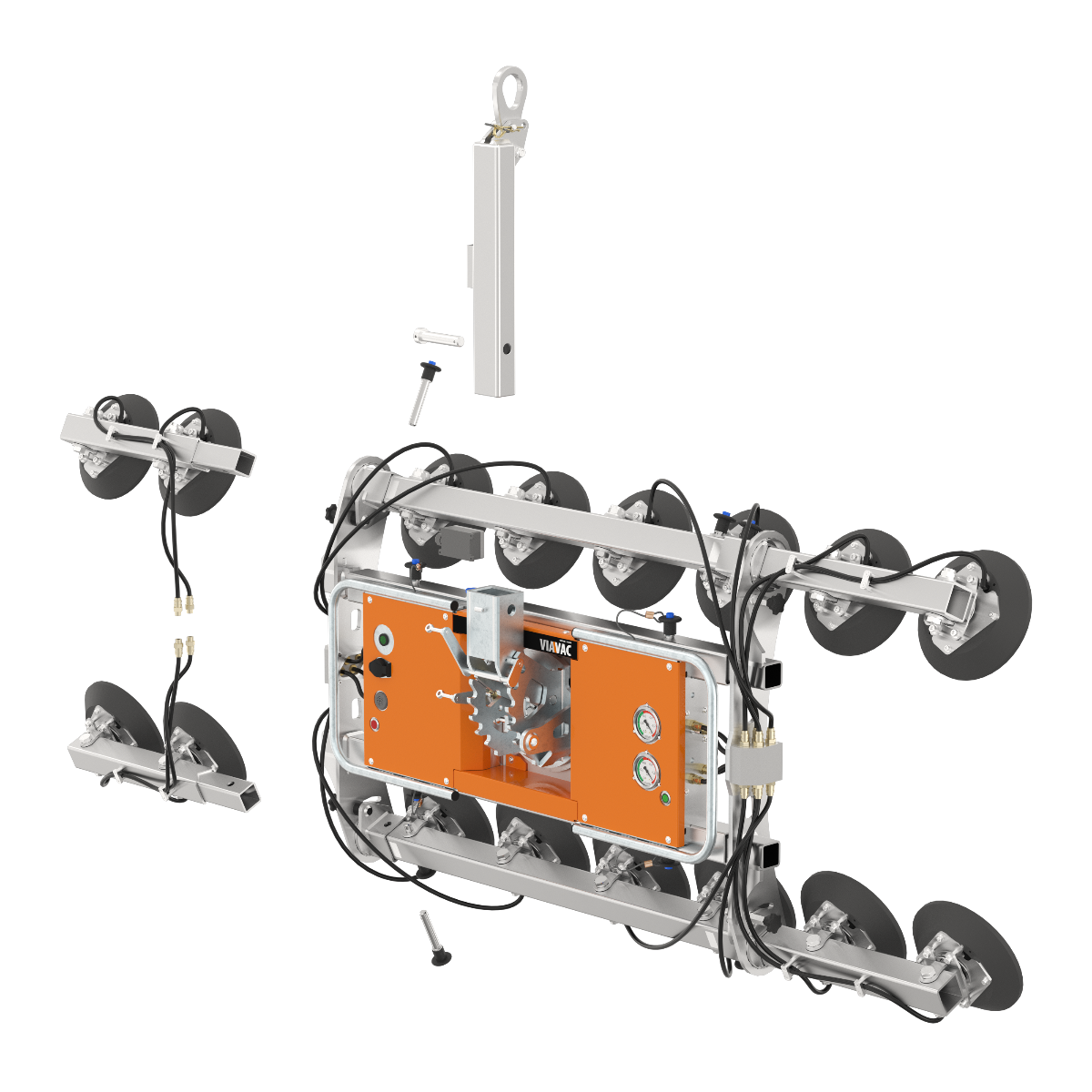

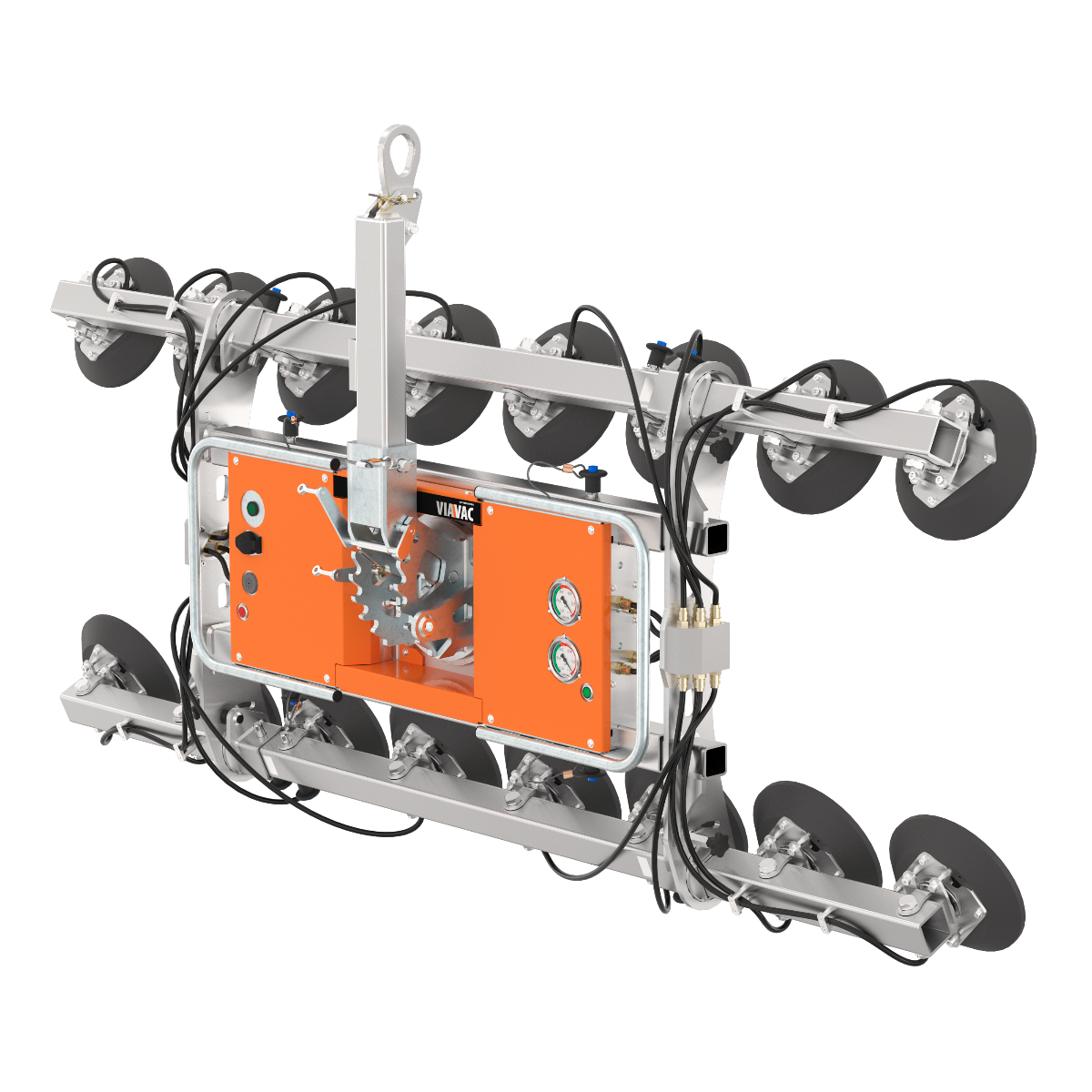

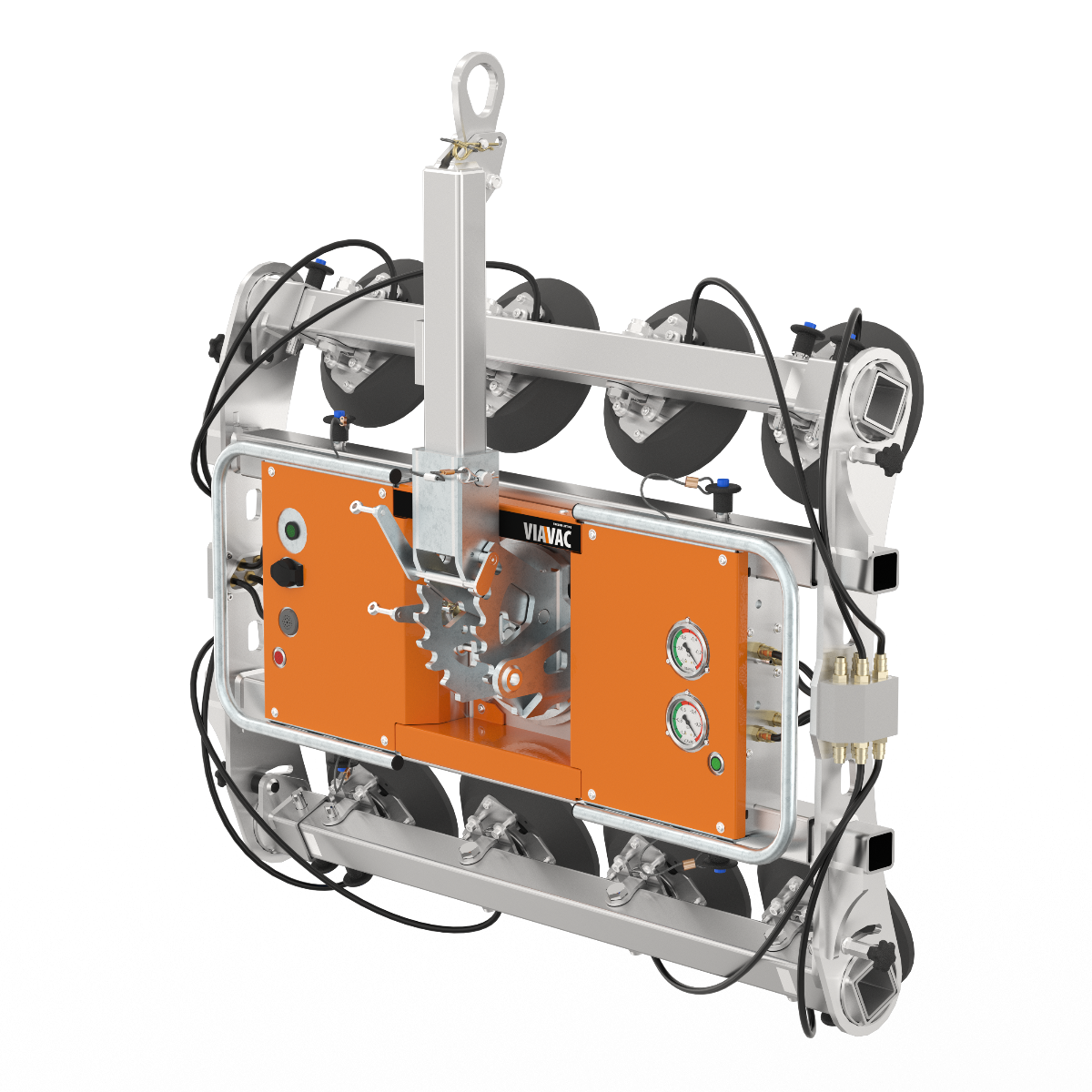

The VIAVAC GB-XL Curved can be installed quickly and easily in two different configurations. In its smallest configuration, this glass lifter hoists curved glass up to 350 kilograms. Need more capacity? Expanding the glass lifter with additional suction pads increases the lifting capacity to 700 kilograms. The handling dimensions of the glass lifter can be adjusted from a minimum of 960 × 1,100 mm (350 kg) to a maximum of 960 × 2,200 mm (700 kg).
Minimum radius 800 mm

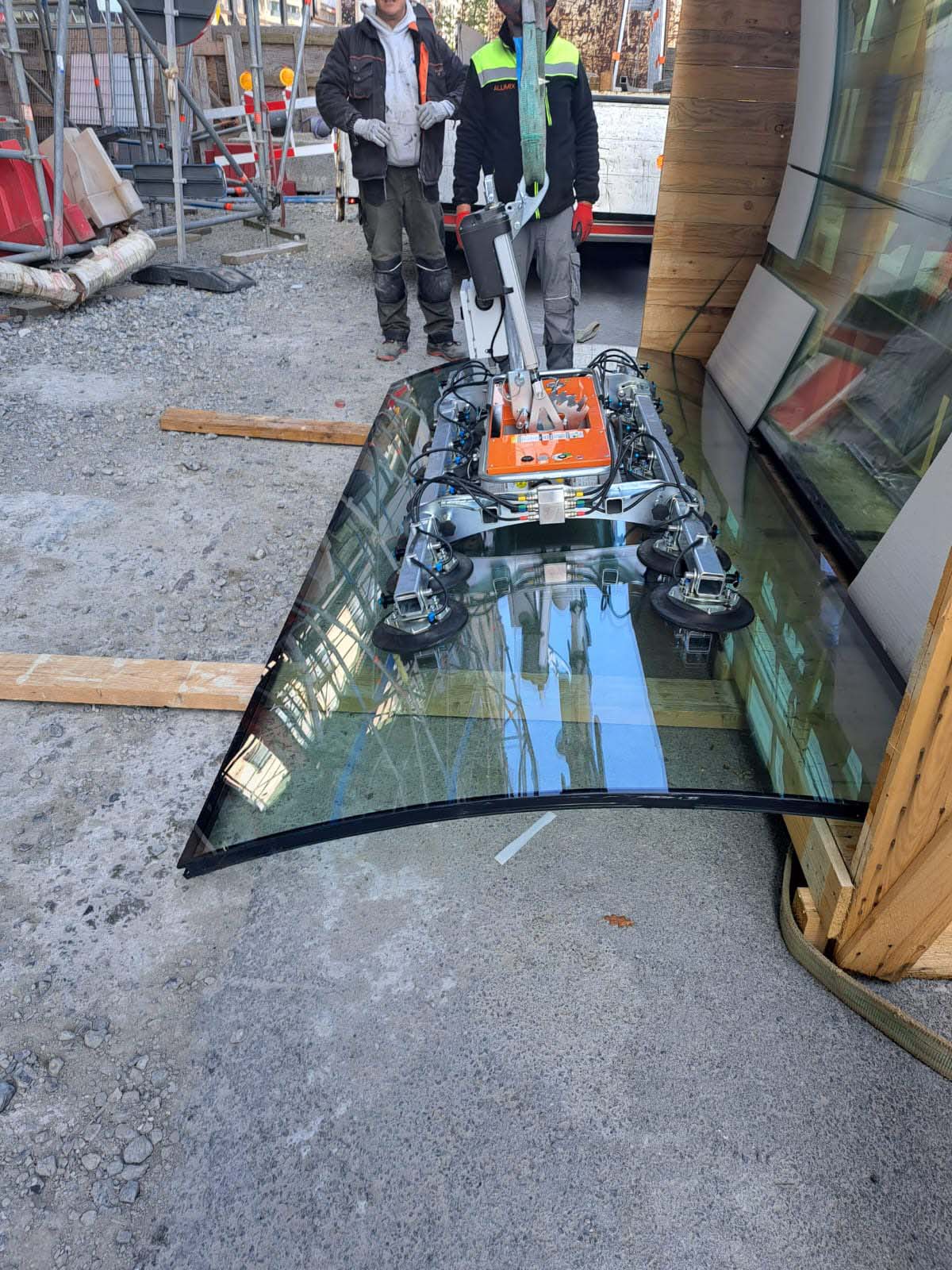

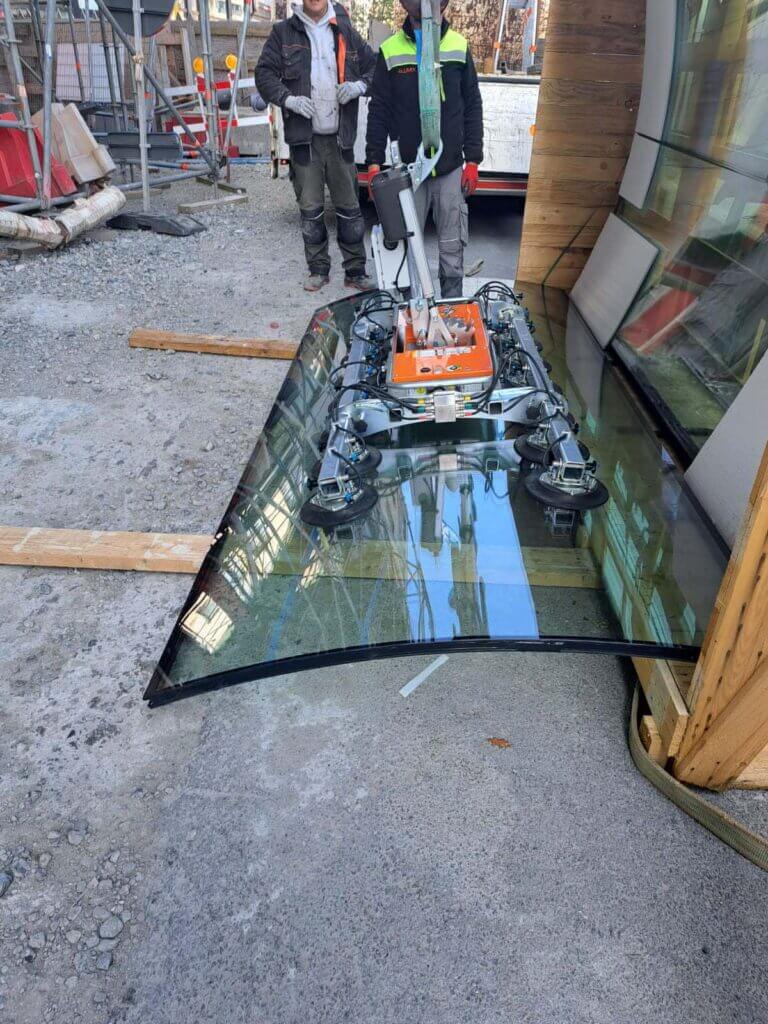

This glass lifter for curved glass is suitable for radiuses from 800 mm. In addition, the glass can be picked up on either the convex or concave side. This allows the glass to be placed on the inside as well as the outside.
The VIAVAC GB-XL Curved is available for both rental and sale.
FEATURES
- Tiltable through 90 degrees, with locking facility at every 18 degrees
- Rotatable through 360 degrees and lockable in four positions
- Suitable for a radius of at least 800 mm
TECHNICAL INFO
Type: GBXL-700/R800
Lifting capacity: 700 kg
Own weight: 150 kg
Vacuum circuit: Dual Circuit
Long or short lifting arm
With the VIAVAC GB-XL Curved, installing curved glass is easy, resulting in time savings and increased productivity. The glass lifter can be ordered with a radio remote control. By default, this lifting tool for glass assembly comes with a long lifting arm, which keeps the glass hanging straight. A short lifting arm is optional for installations in confined spaces.

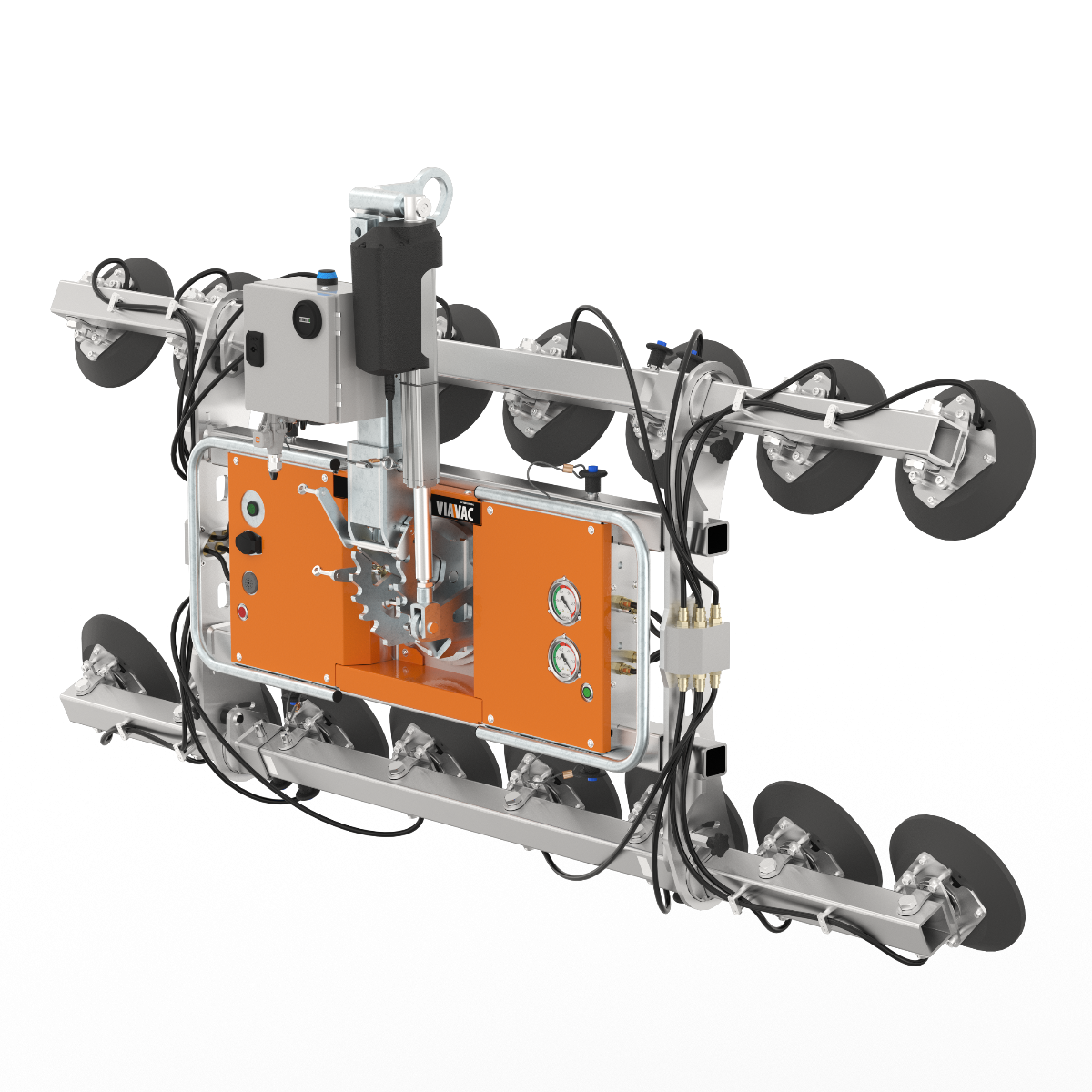

Motorised tilting mechanism for precise and controlled glass installations.
To place the glass in a controlled manner, we have developed a lifting arm with a motorized tilting mechanism equipped with a radio remote control. The glass no longer needs to be tilted manually but instead at the touch of a button. As a result, the glass is placed with millimeter precision. Ask about capabilities.
Installing flat glass or looking for a different glass lifter?
The VIAVAC GB-XL Curved is easily adaptable, allowing you to install flat glass with a different set of suction pads. Or you can also have a look at our other glass lifters. We have the right solution for every glass installation.
The Next Step
Interested in learning more? Like some more information? Want to see a unit or two in action?
Sales
Looking to purchase? Click here to find out more information
Hire
Looking to hire? Click here to find out more information
Training & Support
Need advice, or to arrange training? Click here to find out more information
Glass Boy GB-XL Curved FAQs
The GB-XL Curved is easily adaptable, allowing you to install flat glass with a different set of suction pads. Or you can also have a look at our other glass lifters. We have the right solution for every glass installation.
Yes, the GB-XL Curved is compliant with all relevant European and UK regulations. It also meets worldwide regulations and legislation and is fully CE marked. We can help you maintain LOLER compliance through ongoing servicing and maintenance of your Glass Boy GB-XL Curved.
